Centrifugal stirrer without blades C-MiX
C-MiX
Rotate the stirrer of two communication holes (discharge hole and suction hole) with different distances around the shaft.
Stirring This is a completely new stirring technology that creates a centrifugal force inside the body to mix (stir) a stream of water (liquid).
Features
・Does not entrain air (less foaming)
・Does not destroy the properties of the material (low shear)
・Mix well to the bottom of the container (prevention of sedimentation)
Specifications
SUS316
Fluororesin type

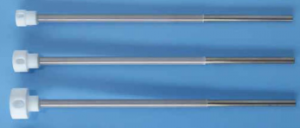

LD-019W03F-8300F
[Head]
Caliber: Φ19mm
Shape: Semicircle
Material: PTFE
[Shaft]
Diameter: Φ8
Length: 300mm
Material: Fluorine coating
[Reference stirring power (water)]
Stirring capacity: 1 L or less
Rotation speed: 500 ~ 1000rpm
Caliber: Φ19mm
Shape: Semicircle
Material: PTFE
[Shaft]
Diameter: Φ8
Length: 300mm
Material: Fluorine coating
[Reference stirring power (water)]
Stirring capacity: 1 L or less
Rotation speed: 500 ~ 1000rpm
LD-025W03F-8300F
[Head]
Caliber: Φ25mm
Shape: Semicircle
Material: PTFE
[Shaft]
Diameter: Φ8
Length: 300mm
Material: Fluorine coating
[Reference stirring power (water)]
Stirring capacity: 1 ~ 3L or less
Rotation speed: 500 ~ 1000rpm
Caliber: Φ25mm
Shape: Semicircle
Material: PTFE
[Shaft]
Diameter: Φ8
Length: 300mm
Material: Fluorine coating
[Reference stirring power (water)]
Stirring capacity: 1 ~ 3L or less
Rotation speed: 500 ~ 1000rpm
LD-035W03F-8300F
[Head]
Caliber: Φ35mm
Shape: Semicircle
Material: PTFE
[Shaft]
Diameter: Φ8
Length: 300mm
Material: Fluorine coating
[Reference stirring power (water)]
Stirring capacity: 2 ~ 5L or less
Rotation speed: 500 ~ 1000rpm
Caliber: Φ35mm
Shape: Semicircle
Material: PTFE
[Shaft]
Diameter: Φ8
Length: 300mm
Material: Fluorine coating
[Reference stirring power (water)]
Stirring capacity: 2 ~ 5L or less
Rotation speed: 500 ~ 1000rpm

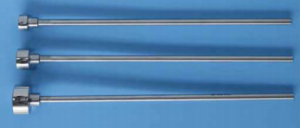

LD-019W03S-8300S
[Head]
Caliber: Φ19mm
Shape: Semicircle
Material: SUS316
[Shaft]
Diameter: Φ8
Length: 300mm
Material: SUS316
[Reference stirring power (water)]
Stirring capacity: 1 L or less
Rotation speed: 500 ~ 1000rpm
Caliber: Φ19mm
Shape: Semicircle
Material: SUS316
[Shaft]
Diameter: Φ8
Length: 300mm
Material: SUS316
[Reference stirring power (water)]
Stirring capacity: 1 L or less
Rotation speed: 500 ~ 1000rpm
LD-025W03S-8300S
[Head]
Caliber: Φ25mm
Shape: Semicircle
Material: SUS316
[Shaft]
Diameter: Φ8
Length: 300mm
Material: SUS316
[Reference stirring power (water)]
Stirring capacity: 1 ~ 3L or less
Rotation speed: 500 ~ 1000rpm
Caliber: Φ25mm
Shape: Semicircle
Material: SUS316
[Shaft]
Diameter: Φ8
Length: 300mm
Material: SUS316
[Reference stirring power (water)]
Stirring capacity: 1 ~ 3L or less
Rotation speed: 500 ~ 1000rpm
LD-035W03S-8300S
[Head]
Caliber: Φ35mm
Shape: Semicircle
Material: SUS316
[Shaft]
Diameter: Φ8
Length: 300mm
Material: SUS316
[Reference stirring power (water)]
Stirring capacity: 2 ~ 5L or less
Rotation speed: 500 ~ 1000rpm
Caliber: Φ35mm
Shape: Semicircle
Material: SUS316
[Shaft]
Diameter: Φ8
Length: 300mm
Material: SUS316
[Reference stirring power (water)]
Stirring capacity: 2 ~ 5L or less
Rotation speed: 500 ~ 1000rpm
